Description

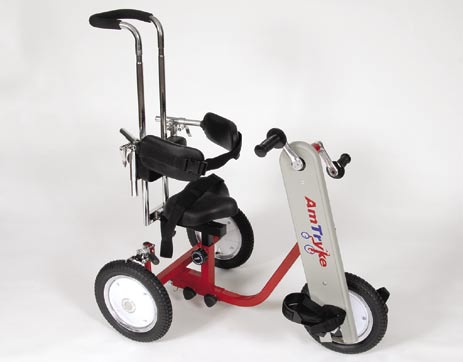

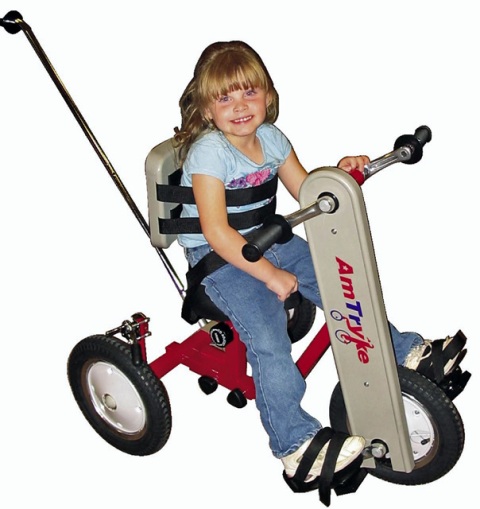

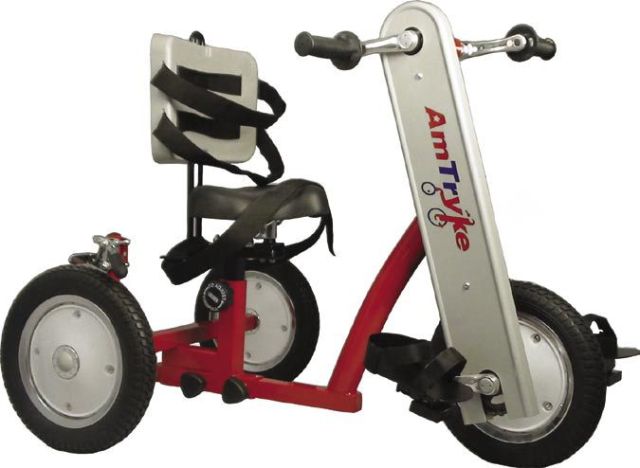

AM-12 AmTryke® Therapeutic Tricycle*

This tryke features the combination hand/foot drive. It is designed to build strength and coordination for a wide range of children with disabilities. This tryke is suitable for children approximately 3 to 8 years of age, with a height of 36 to 42 inches and inseam of 15 to 24 inches. It has 12-inch pneumatic front and rear wheels. The AM-12 easily dismantles for transport via car trunk, etc. Maximum weight is 150 lbs. Choose saddle seat w/plastic seat back or bucket seat option. Assembly required.

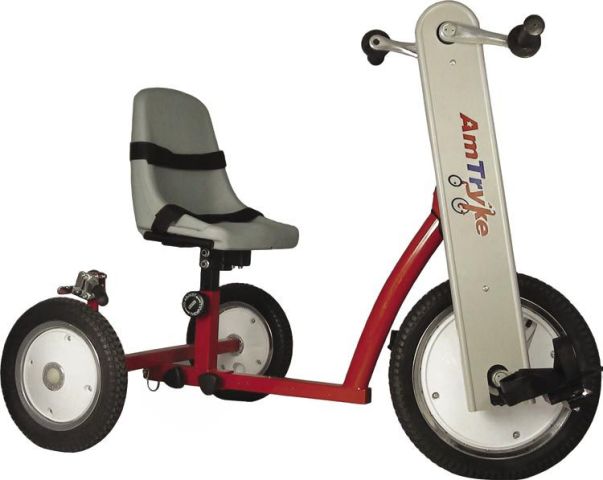

AM-16 AmTryke® Therapeutic Tricycle*
This is the largest tryke that features the combination hand/foot drive. It is designed to build strength and coordination for a wide range of people with disabilities. This tryke is suitable for riders approximately 8 years of age and older, with a height of at least 41 inches and inseam of 20 to 28 inches. It has 16-inch pneumatic front wheel and 12-inch pneumatic rear wheels. The AM-16 easily dismantles for transport via car trunk, etc. Maximum weight is 175 lbs. Choose saddle seat w/plastic seat back or bucket seat option. Assembly required.

*patent pending

Features

• Continuous chain mechanism for hand/foot movement

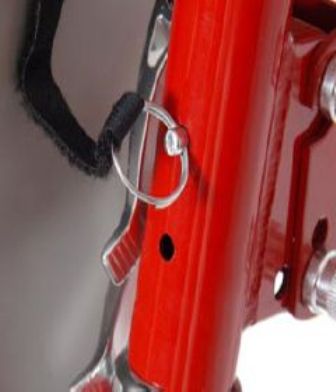

• Steering lock pin for three graduated steering positions: straight, 20-degrees left/right, free steering

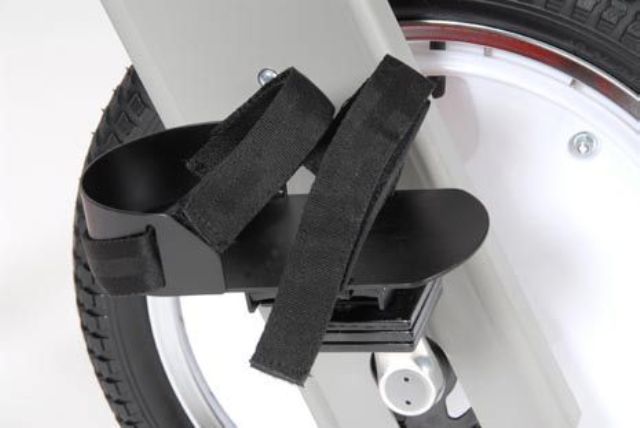

• Self-righting pedals with heel and instep hook and loop straps
• Includes black poly hook/loop safety chest and lap straps

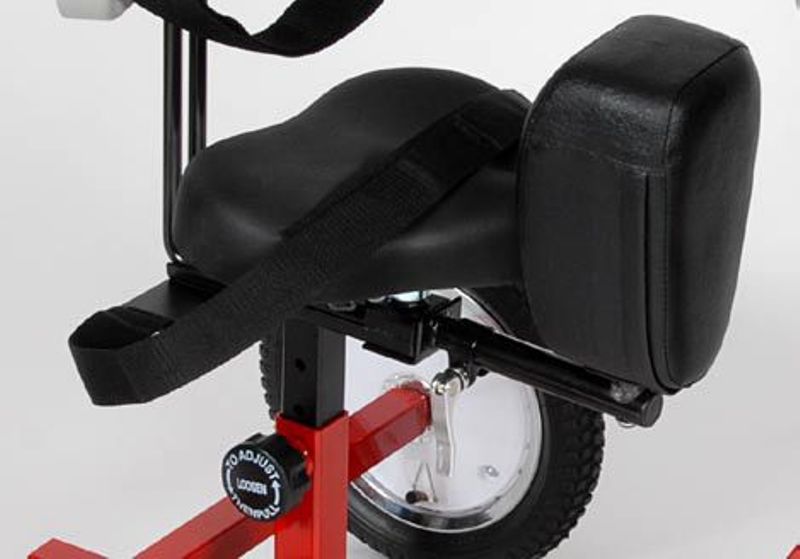

• 4-way adjustable seating available with choice of either a bucket or saddle seat with plastic seat back
• Low center of gravity

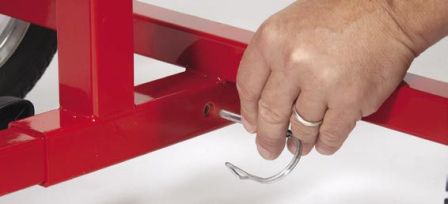

• Large knobs for easy frame length adjustment to accommodate growth
• Loading brake for easy transfer of rider

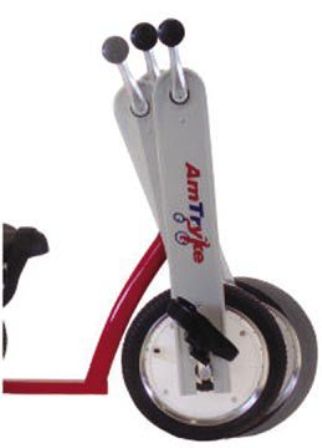

• Unique hinged front end with three positions for adjustable hand crank/foot crank to seat alignment
• Safety helmet included, please select size when ordering

Measurements

Model:	AT-150B	AT-150S	AT-250B	AT-250S
User height (E):	36”-42”	36”-42”	41” and up	41” and up
*Arm length:**	15”-20”	15”-20”	16”-24”	16”-24”
Inseam (B):	17 ½”-24”	17 ½”-24”	21”-28”	21”-28”
Seat to floor:	16 ½”-19 ½”	16 ½”-19 ½”	18”-22 ½”	18”-22 ½”
Age range:	3-8 years	3-8 years	8 years and up	8 years and up
Max user weight:	150 lbs.	150 lbs.	175 lbs.	175 lbs.
Pneumatic Wheels:	12” front 12” rear	12” front 12” rear	16” front 12” rear	16” front 12” rear
Seat:	Bucket	Saddle	Bucket	Saddle

*Arm Length is the measurement from the top of the shoulder to the middle of the hand (where handlebar grip goes)

**Please indicate helmet size when ordering**
Size Helmet (Included)	Head Circumference
XX-Small	18 1/2" - 19 1/2"
X-Small	20 1/2" - 22"
Small/Medium	22" - 23 5/8"
Large/X-Large	23 5/8" - 25 3/4"
