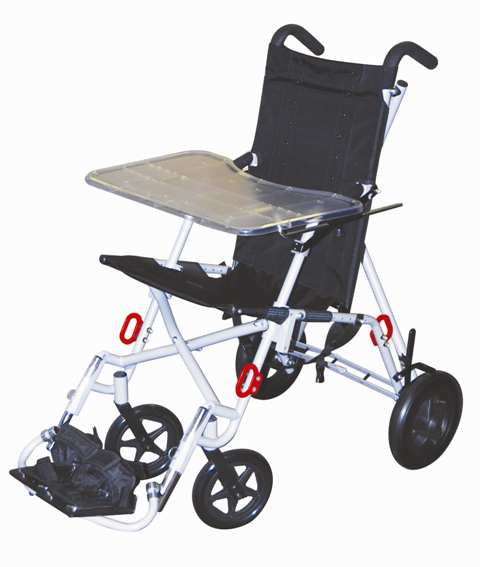

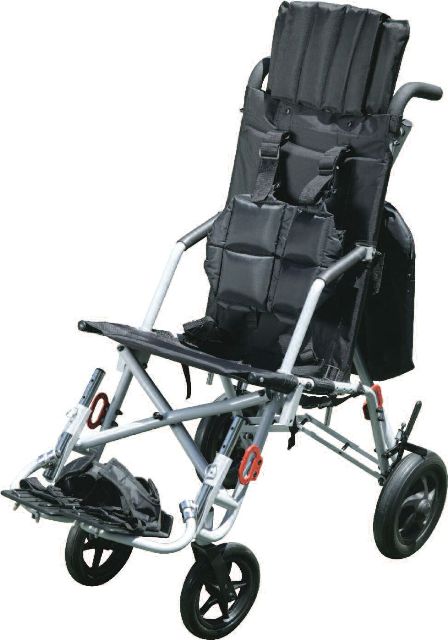

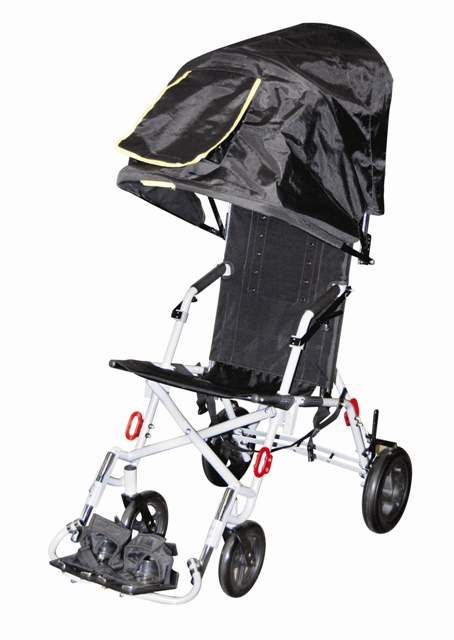

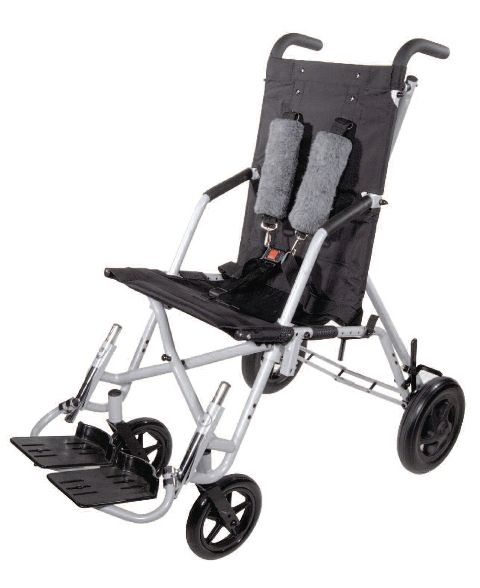

TherAdapt | Trotter Mobility Chair

Description Features Measurements Accessories Downloads

Description

The Trotter is a lightweight portable positioning chair that provides transport solutions for parents and children. A wide range of options provide custom positioning for your individual needs and its simple adjustments allow the Trotter to grow with your child.

Features

• Lightweight folding frame with closure strap that holds the chair shut when folded.

• Black machine washable fabric.

• Crash tested for transit. The Trotter has passed a dynamic crash test done with a 130 lb. front-facing occupant tested at 30 mph.

• Adjustable seat angle - 15° and 22°.

• Adjustable back angle - 85°, 90° and 95°.

• 8” front casters and 10” rear wheels with toggle lock.

• Adjustable seat depth.

• Positioning pelvic belt and five point “H” harness with padded strap covers. The reversible padded strap covers increase comfort and one side of cover is imitation lamb's wool and the other is velour.

• Swing-away footrest are independently adjustable and removable.

• Two Year Limited Warranty.

Measurements

Trotter Model:	TR-1200	TR-1400	TR-1600	TR-1800
Seat width (G):	11 ¾”	13 ¾”	15 ½”	17 ½”
Seat depth (B1):	11 ½”-13 ½”	13”-15”	13 ½”-15 ½”	15”-17”
Back height (E):	20”	23”	24”	25”
Seat height (A) to footplate:	8”-22”	9”-22”	10”-22 ½”	11”-23”
Seat height (A) to floor:	22”	22”	22”	22 ½”
Product weight:	19 lbs.	21 lbs.	24 ½ lbs.	30 lbs.
User weight capacity:	75 lbs.	100 lbs.	170 lbs.	250 lbs.
Weight Capacity w/ Transit Option:	70 lbs.	100 lbs.	170 lbs.	170 lbs.
