Description

The AmTryke ProSeries Models are a departure from the original hand and foot connection. They were developed in response to requests from therapists who wanted a more traditional tricycle for riders with special needs. The ProSeries is available in 3 different models to meet the abilities and sizes of a wide range of riders.

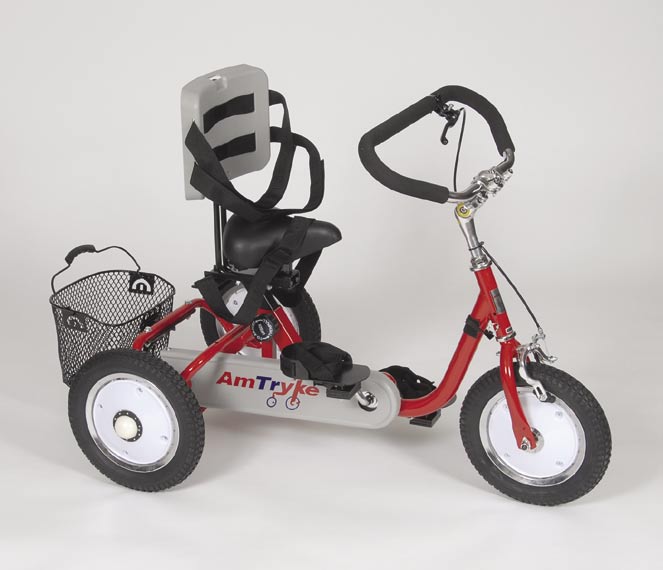

AmTryke ProSeries Model 1412

This tricycle is designed for children ages 4 through 10 and is built on 12-inch pneumatic wheels. This tryke is for riders that do not need the hand and foot component. It can be adapted to different size riders as it has four different seat post positions. It comes with a saddle seat and plastic seat back, helmet, and foot plate with straps. Maximum weight is 125 lbs. Assembly required.

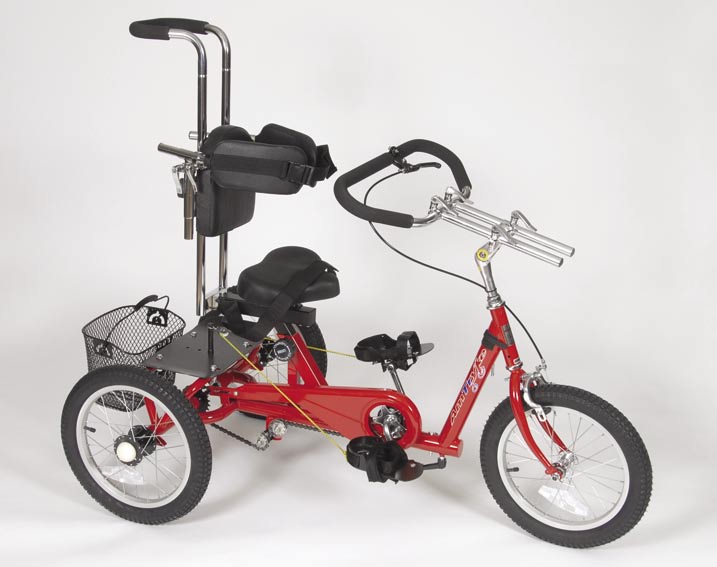

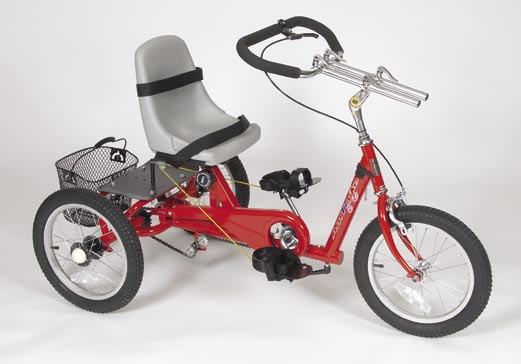

AmTryke ProSeries Model 1416

This tricycle is designed for riders ages 6 to 12 and is built on 16-inch pneumatic wheels. This tryke provides full support to riders with low tone who require additional trunk support. It can be adapted to meet the needs of a wide range of riders, as it has three foot crank positions and four seat post positions. It comes fully loaded with many accessories including a padded seat back, lateral supports, helmet and expanding pedals. Maximum weight is 175 lbs. Assembly required.

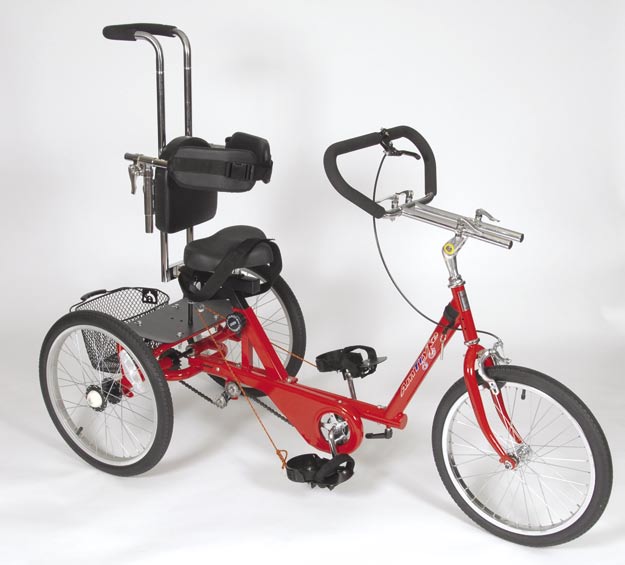

Amtryke ProSeries Model 1420

This tricycle is designed for riders ages 10 and older and is built on 20-inch pneumatic wheels. This tryke provides full support to riders with low tone who require additional trunk support. It offers four different seat post positions and three foot crank positions and can be adapted to meet the needs of a wide range of riders. It comes fully loaded with many adaptations including a paddes seat back, 2 lateral supports, helmet and foot supports. Maximum weight is 250 lbs. Assembly required.

“Our daughter Haley has never had the freedom of travel that she experiences when riding her AmTryke. Walking has always been a struggle, especially for any length of distance. With her tricycle, Haley can now zoom ahead of me while I am walking and it is a great ego boost for her. The tricycle has also helped build her logic skills when figuring out the three point turn. Thank you so much for giving her a new freedom and a great way to build her muscles!“

- The Joyce family in Colorado

Features

Pro Series 1412

• Positive drive action means foot crank is constantly in motion for full therapeutic effect.

• Steering lock pin for three graduated steering positions: straight, 20 degrees left/right, free steering.

• Self-righting pedals with heel and instep hook and loop straps.

• Black poly hook/loop chest and lap straps.

• Four-way adjustable seating.

• Side pull-caliber brake with built-in lock for easy transfer of rider.

• Locking cam levers for easy adjustments.

• Saddle seat with plastic seat back

• Steel wire basket and safety helmet included, please select size when ordering

ProSeries 1416 & 1420

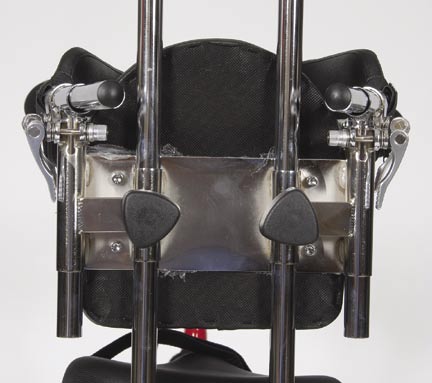

• 1400 seat back set (padded back rest and two lateral supports)

• Three different foot crank positions

• Four seat post positions to accommodate various rider sizes

• Positive drive action means foot crank is constantly in motion for full therapeutic effect.

• Lap hook and loop strap

• Adjustable chest strap

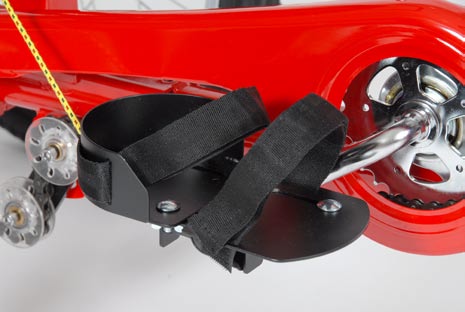

• Adjustable-length expanding pedals with hook and loop heel and instep straps

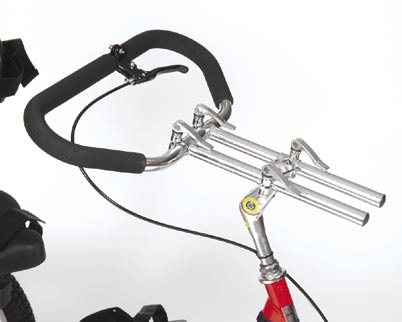

• Adjustable handle bars

• Foot support levelers

• Side pull-caliber brake with built-in lock for easy transfer of rider.

• Locking cam levers for easy adjustments.

• Detachable front frame for easy storage and transport

• Steel wire basket and safety helmet included, please select size when ordering

• Steering lock pin for three graduated steering positions: straight, 20-degrees left/right, free steering

• Expanding pedals

• Positive drive action means foot crank is constantly in motion for full therapeutic effect.

Measurements

**Measurements for Amtryke ProSeries Models**
	AT-1412	AT-1416	AT-1420
Arm Length*	14"-22"	16"-24"	18"-26"
Inseam	16"-24"	18"-26"	20"-28"
Seat to floor	18"-24"	23"-27"	26" +
Rider's Height	36"-42"	41"-60"	55" +
Age Range	4-10 years old	6-12 years old	10 years and up
Wheels	12" pneumatic	16" pneumatic	20" pneumatic
Max user weight	125 lbs.	175 lbs.	250 lbs.

*Arm Length is the measurement from the top of the shoulder to the middle of the hand (where handlebar grip goes)

**Please indicate helmet size when ordering**
Size Helmet (Included)	Head Circumference
XX-Small	18 1/2" - 19 1/2"
X-Small	20 1/2" - 22"
Small/Medium	22" - 23 5/8"
Large/X-Large	23 5/8" - 25 3/4"
